Scroll Compressor Elements
Compare oil-free scroll compressor elements by part number and assembly appearance. Electrical, mounting and package variants should be checked against the original unit.
Scroll Compressor Elements part-number references
oil-free scroll compressor element
Atlas Copco / Quincy 1616741882 5.5 kW 10 bar oil-free scroll element
oil-free scroll compressor element

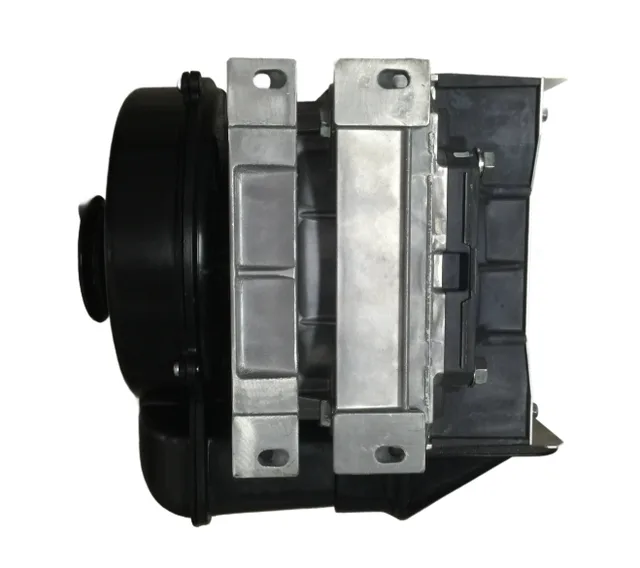

Atlas Copco 1616741883 5.5 kW 8 bar OFSL E-03 scroll element
oil-free scroll air end

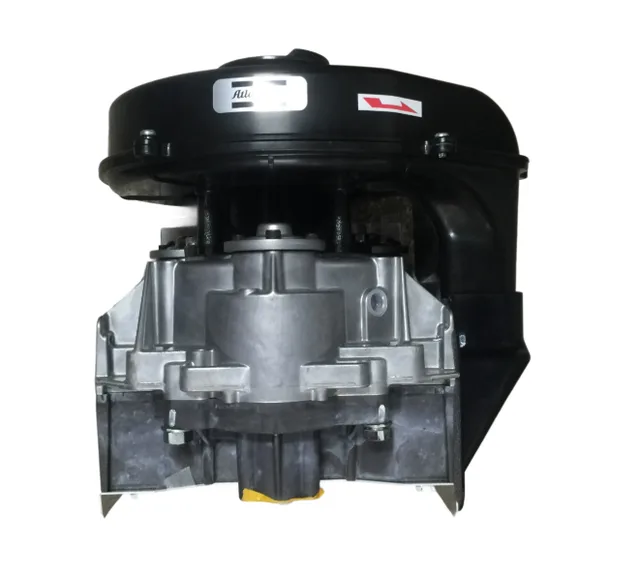

Atlas Copco 1616833681 OFSL D-01 3.7 kW 8 bar air end
oil-free scroll air end

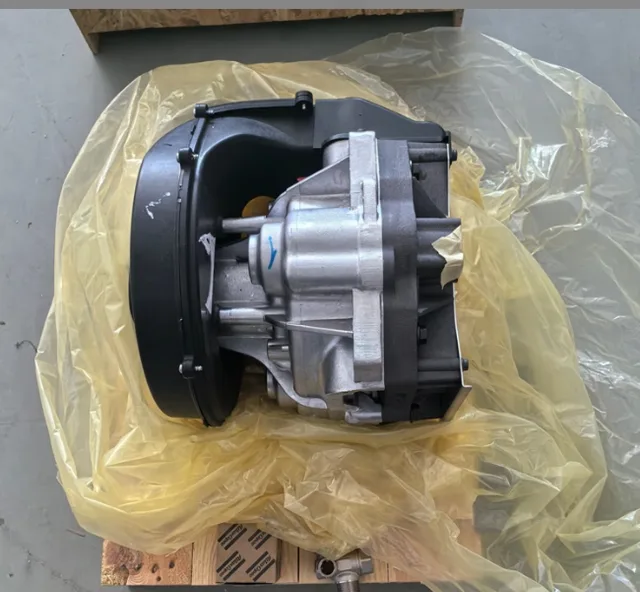

Atlas Copco 1616833682 OFSL D-02 3.7 kW 10 bar air end
oil-free scroll air end

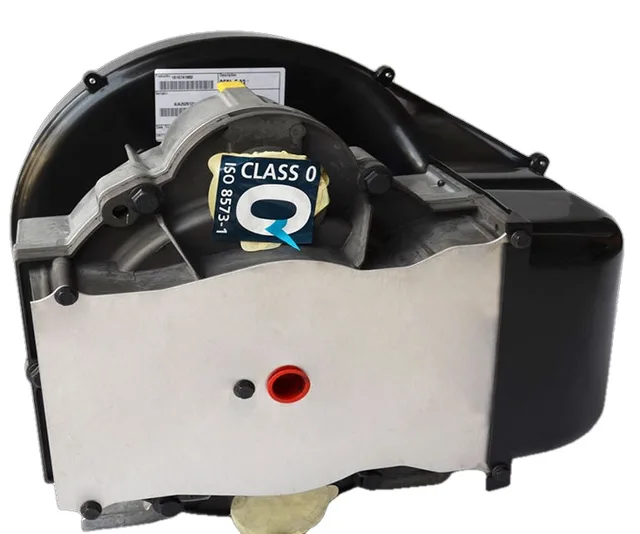

Atlas Copco 1616833683 3.7 kW oil-free scroll air end
scroll compressor element

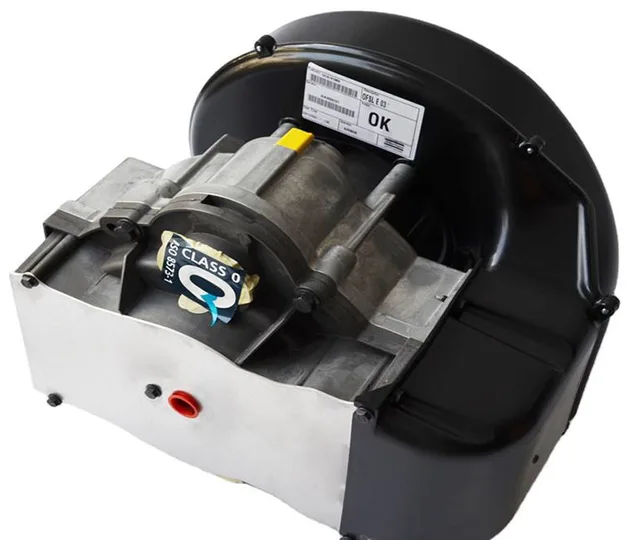

Atlas Copco 1616833685 OFSL oil-free scroll compressor element
oil-free scroll air end

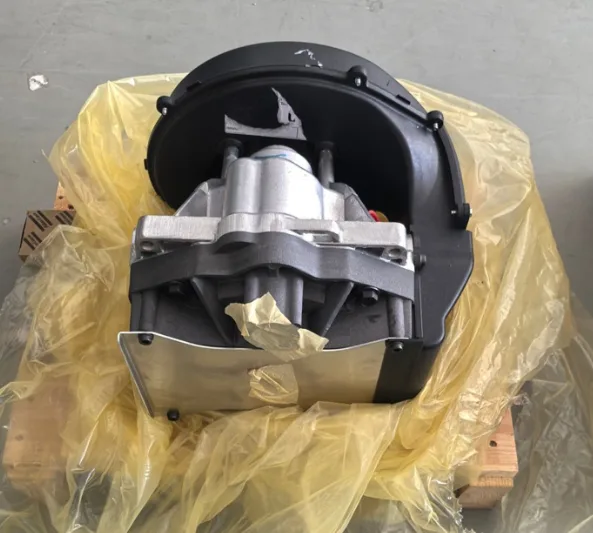

Atlas Copco 2236050000 ATSL-140E 2.2 kW 8–10 bar air end
oil-free scroll air end
Atlas Copco 2236050100 ATSL-165E 3.7 kW 8 bar air end
oil-free scroll air end
Atlas Copco 2236050200 ATSL-1651E 3.7 kW 10 bar air end
element kit
Atlas Copco 2902022201 3.7 kW 8 bar element kit
element kit
Atlas Copco 2902022202 3.7 kW 10 bar element kit
element kit
Atlas Copco 2902022204 5.5 kW 8 bar element kit
element kit
Atlas Copco 2902022211 3.7 kW 10 bar element kit
Identifying a scroll compressor element
Scroll compressor elements are commonly selected by assembly part number, package model and mounting arrangement. Similar-looking scroll modules may be used in different package configurations.
Information to compare
- Scroll element number
- ATSL or assembly code
- Package model
- Motor / coupling arrangement
- Mounting orientation and ports
Is motor power enough to identify a scroll element?
No. Power is only a supporting clue. Confirm the complete assembly number, package model and physical arrangement.
Why are multiple related numbers shown?
A catalog may contain production, service or kit references for a related scroll assembly. Their relationship must be confirmed before ordering.
